Alkincote Street, Keighley – Industrial Unit Development
Project Overview
Project Name: Alkincote Street, Keighley
Location: Keighley, West Yorkshire
Client: Private developer
Project Type: Planning and Building Control approval for new industrial unit

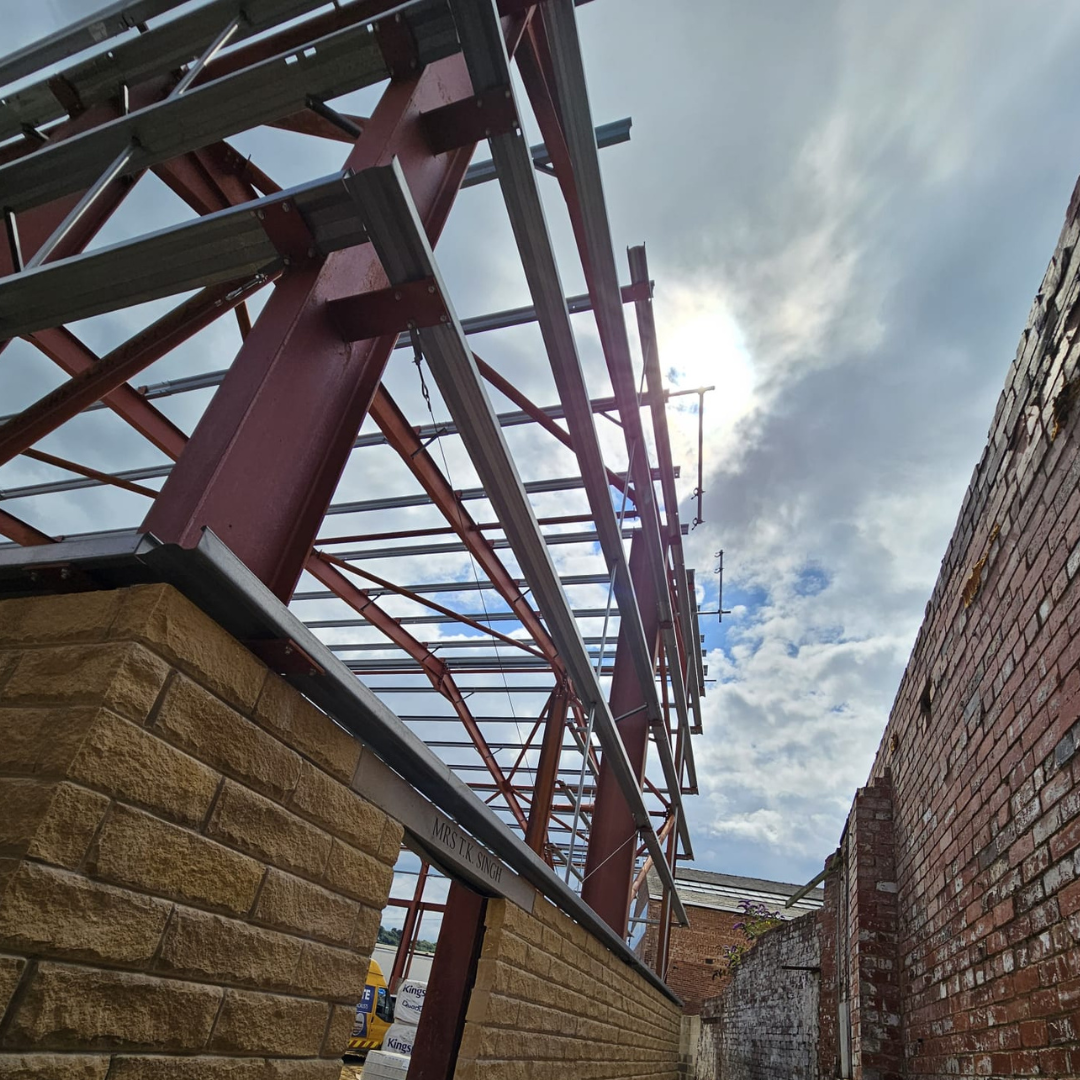

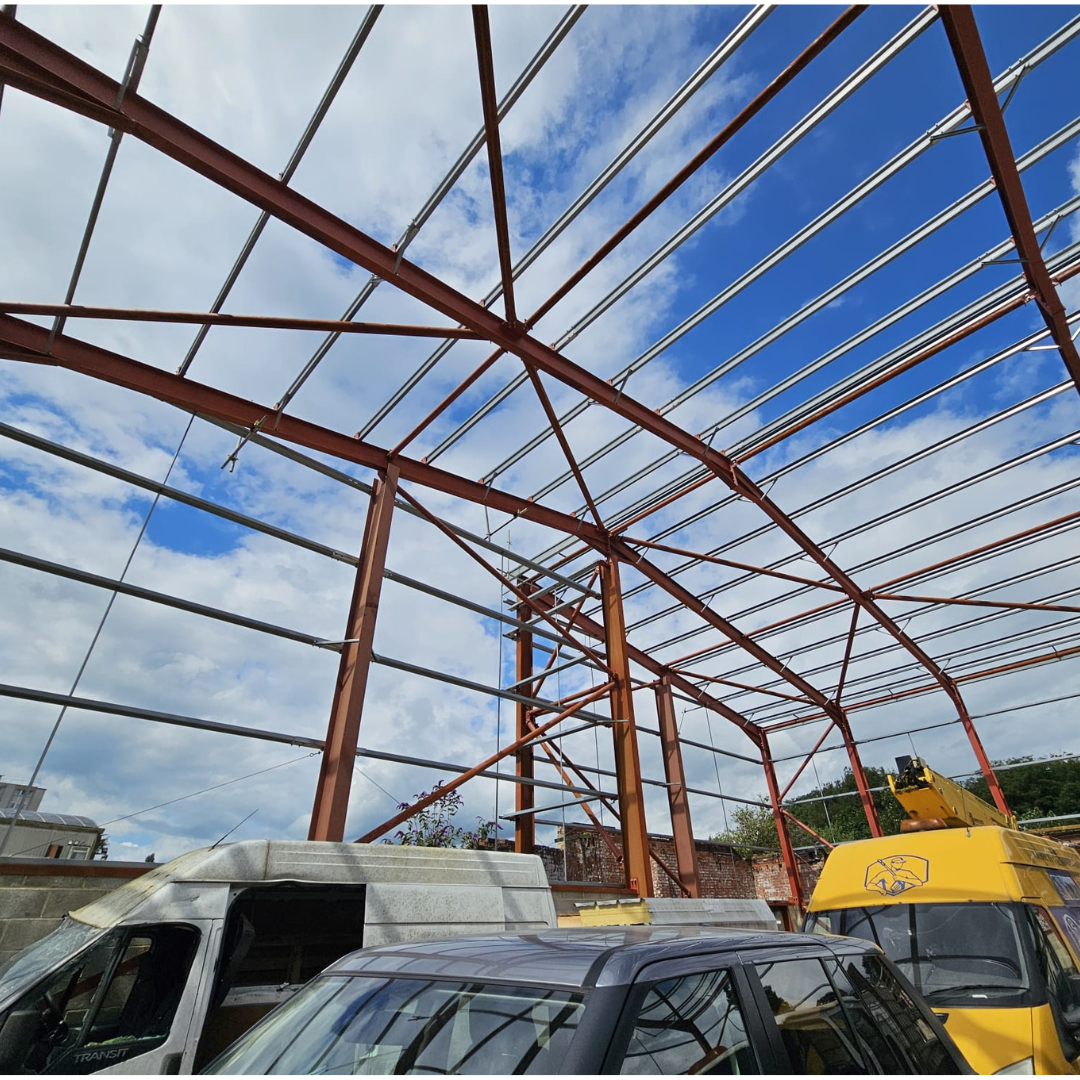

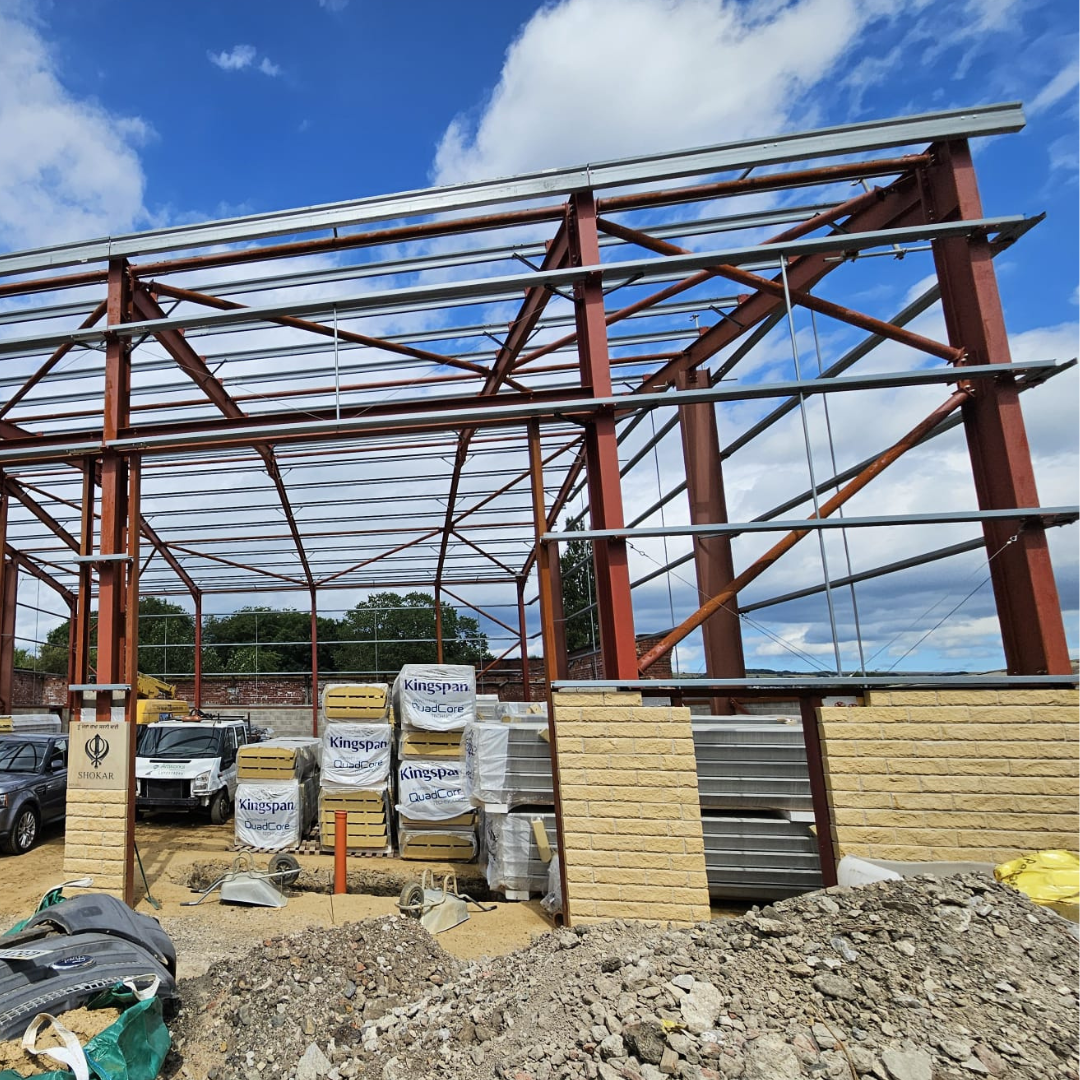

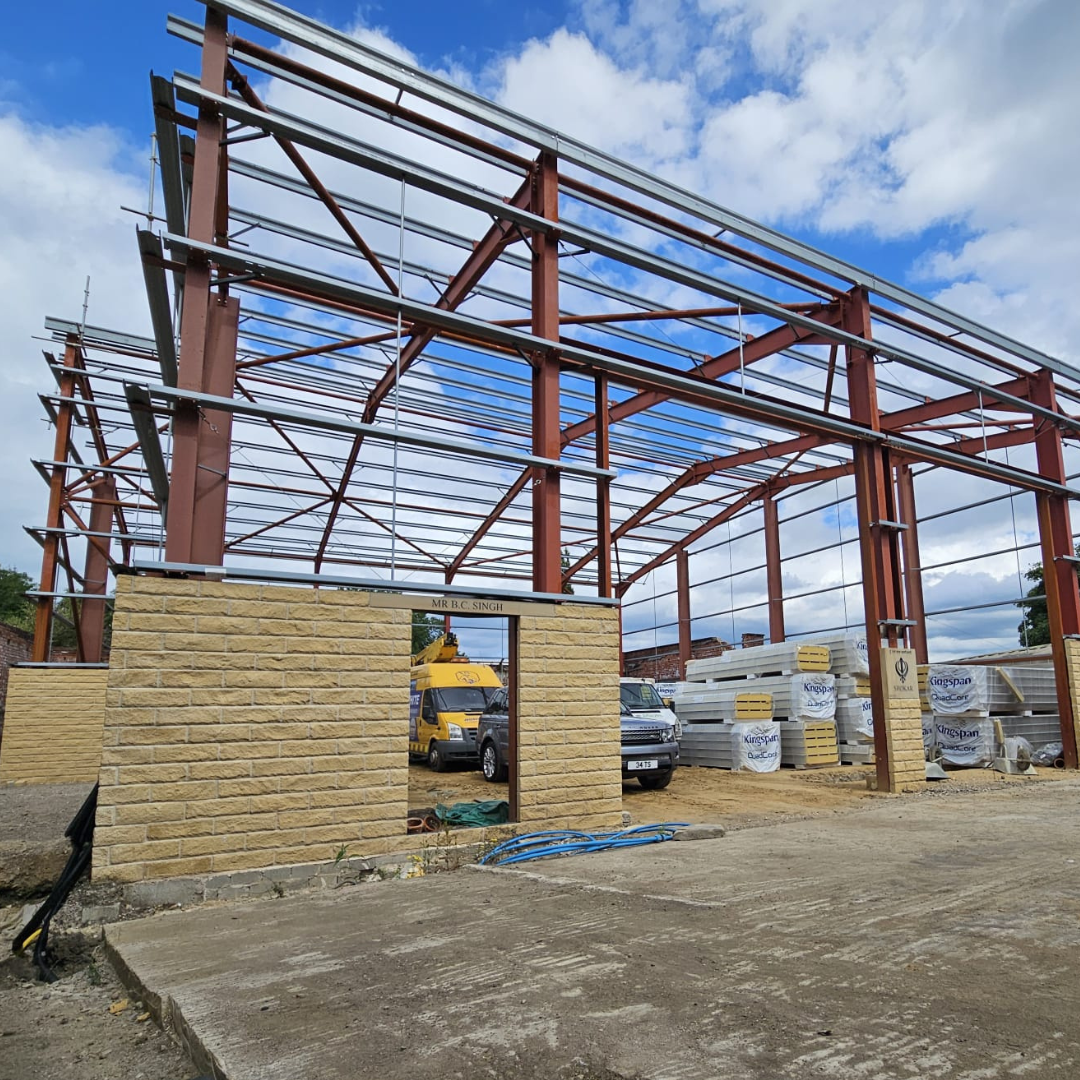

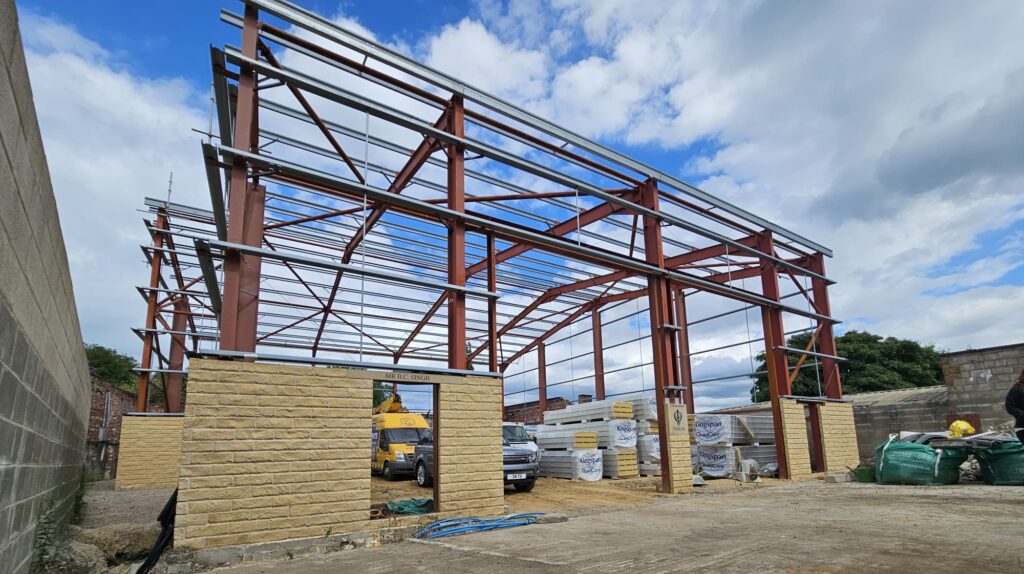

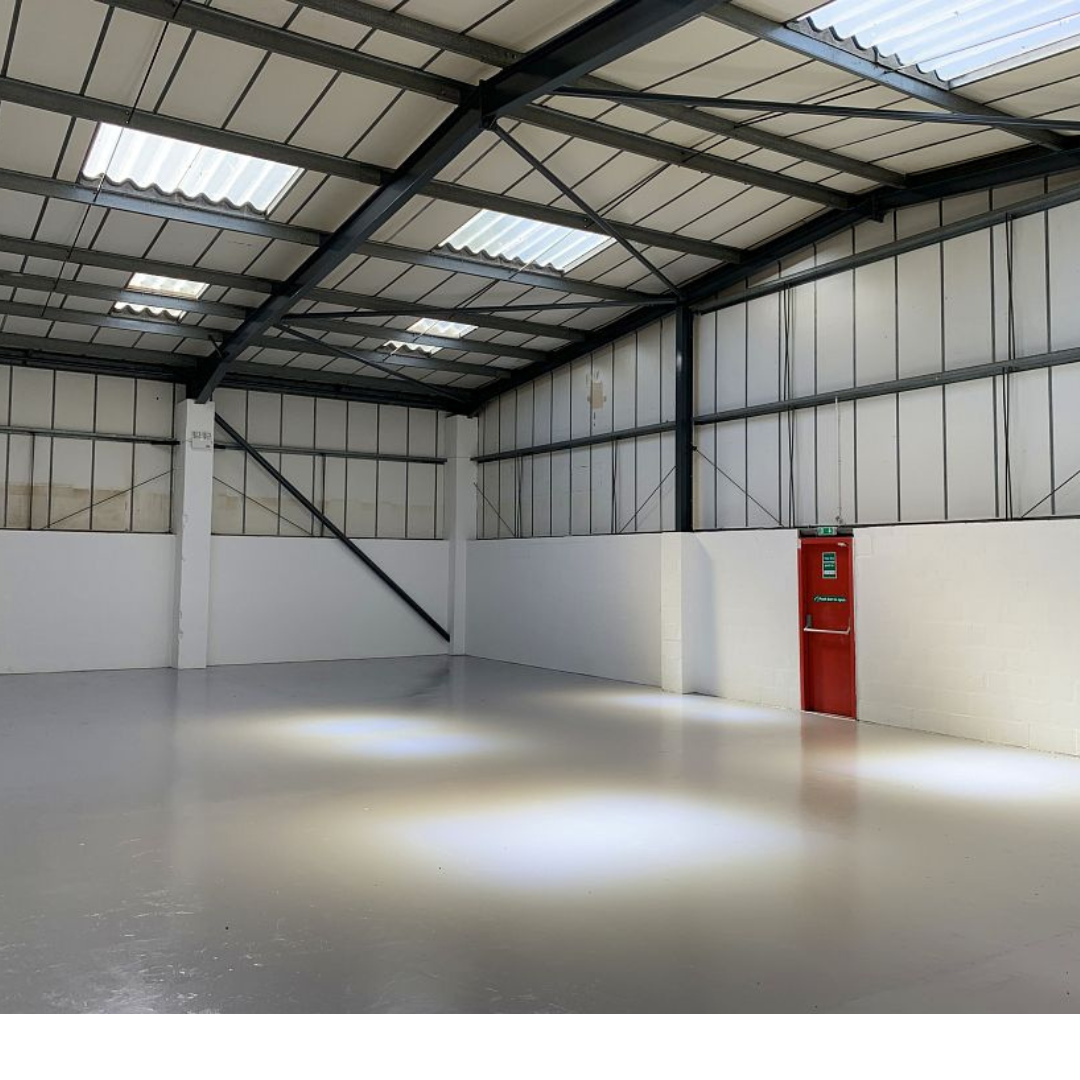

Scale: 6,000 sq ft industrial unit with 4,500 sq ft of parking and yard area; steel portal frame construction; 8 metre ridge height.

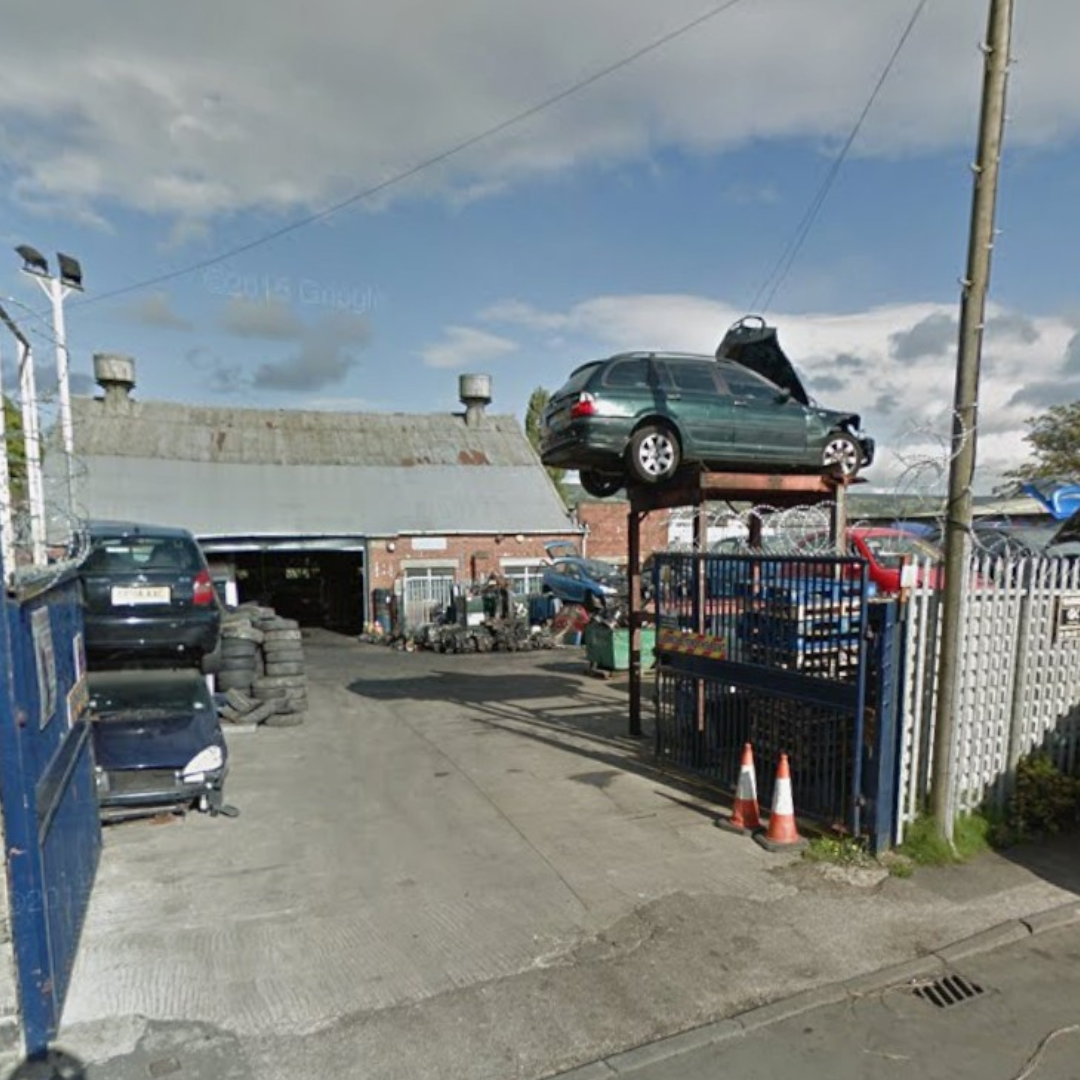

The project involved the redevelopment of a former motor vehicle salvage yard into a modern industrial unit, maximising the site footprint while addressing environmental, structural, and planning considerations. CAD Monke Ltd provided a full-service approach from site survey through to planning and building control approvals.
Our Role
CAD Monke Ltd provided multi-disciplinary services including: planning consultancy, land surveying, architectural technologist services, design, and drafting. We guided the client through every stage, from site analysis to submission of approvals and tender-ready documentation.
The Site
The site was surrounded by traditionally constructed industrial units occupied by engineering and mechanical businesses. A large retaining wall to the rear introduced structural and planning complexities. Due to the sloping nature of the site, CAD Monke completed a full measured land and topographical survey to inform design and planning.
The client’s aim to maximise the developable footprint required the building shape to follow irregular site boundaries. Additional challenges included:
Environmental remediation due to previous brownfield use
Structural and planning considerations for the retaining wall
Planning constraints relating to visibility, massing, and overshadowing of neighbouring properties
Surveying and documenting a dilapidated existing building on site with full health and safety precautions
The Brief
Client Objective
Develop a new industrial unit to replace a currently rented facility, tailored to their operational needs.
Specific Requirements
Large full-height roller shutter doors
Internal height sufficient for lifting high-roof vans on service ramps

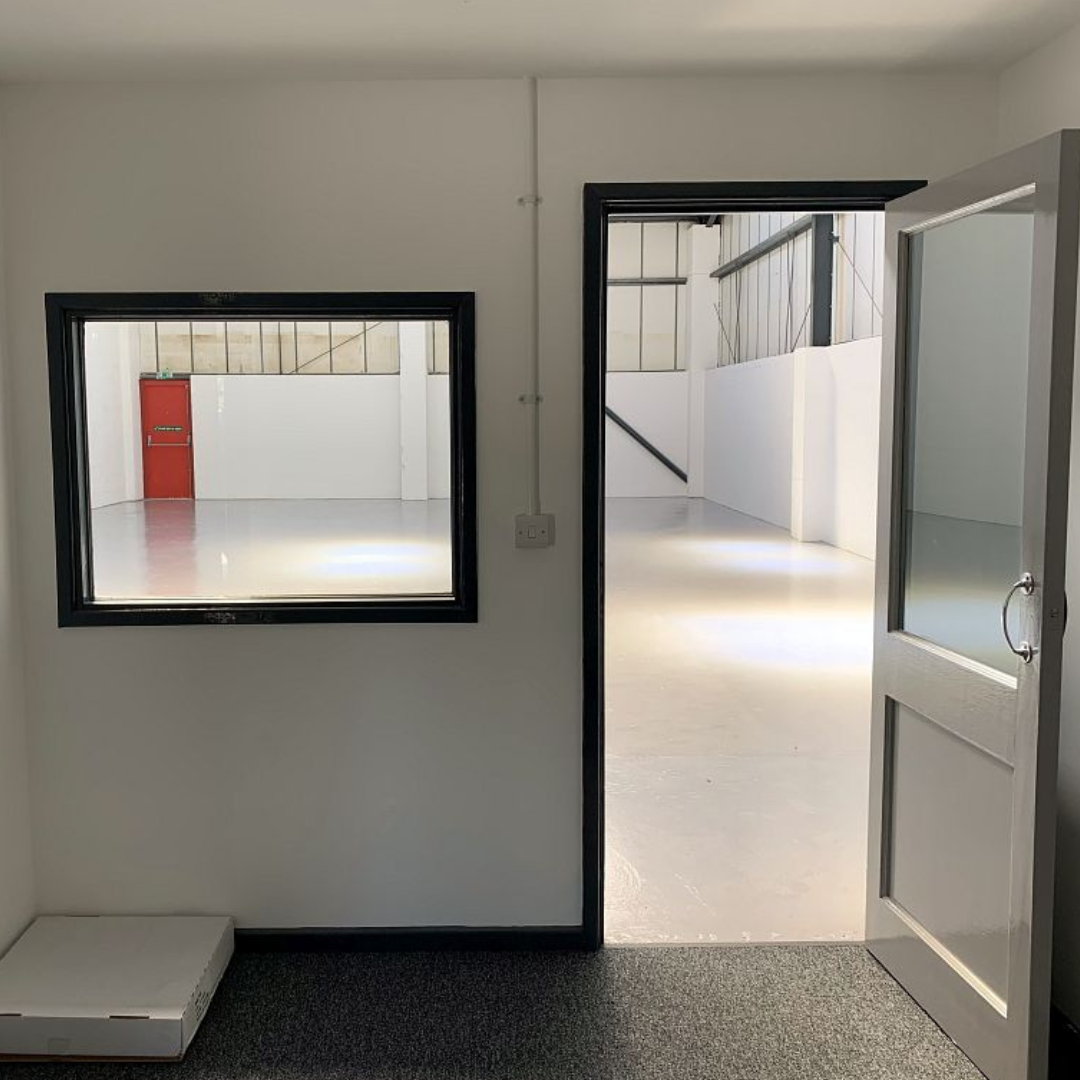

Mezzanine office space occupying half of the unit
Accurate survey data capturing existing site topography and structures
End Goal
Deliver full planning and building control approval, along with tender-ready drawings and specifications, and provide ongoing support throughout construction.
Constraints & Challenges
Design Constraints

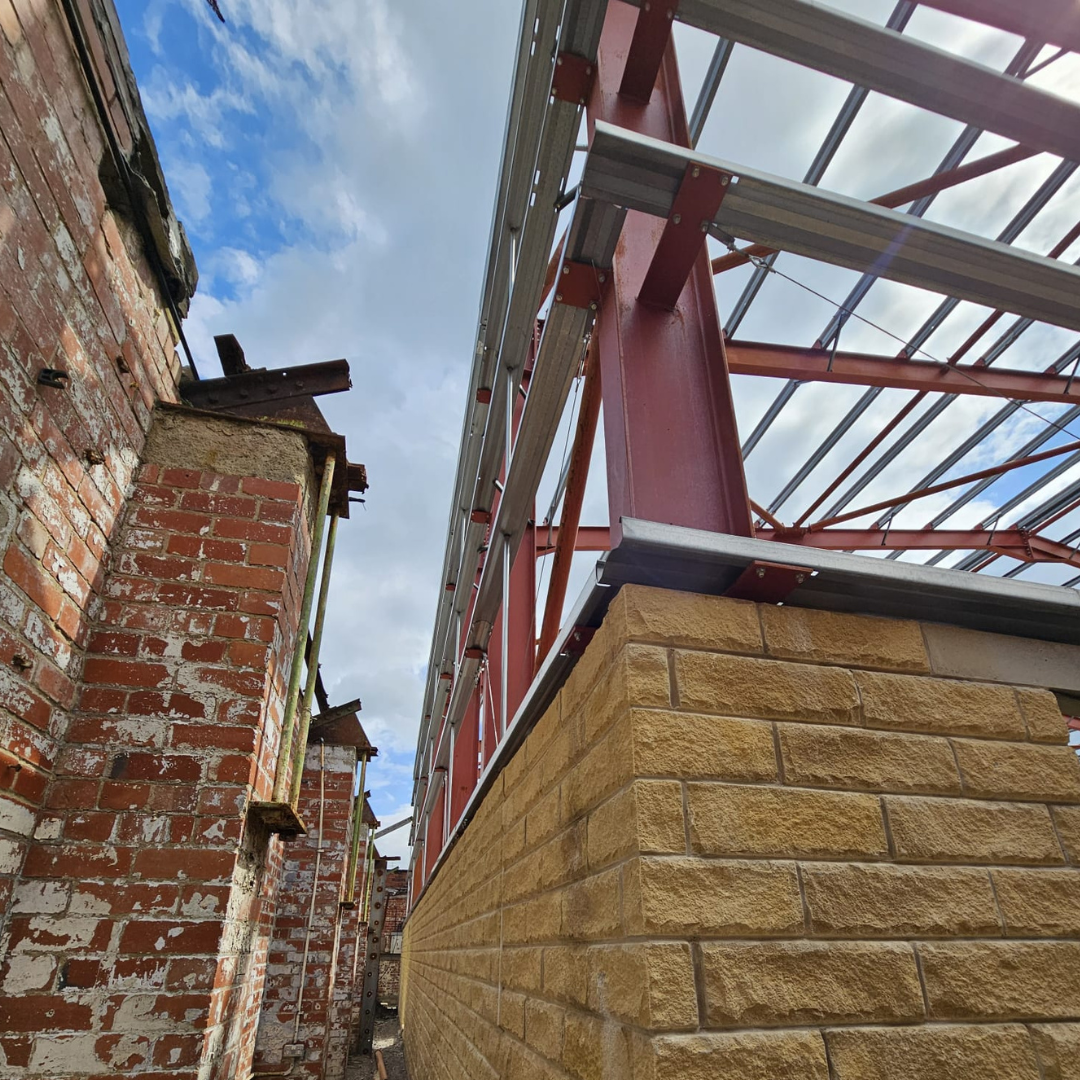

Large retaining wall at the rear of the site
Environmental constraints due to brownfield site history
Existing dilapidated building requiring safe survey and drawings to accompany planning application
Planning Constraints
Compliance with local authority Supplementary Planning Documents (SPD)
Maintaining acceptable visibility, massing, and overshadowing for neighbouring properties
Structural / Environmental Challenges
Collaboration with third-party structural engineers to ensure design feasibility
Maximising space on a sloping site while maintaining workflow, access, and safety
Our Approach
Project Management
Coordinated all roles to collect, consolidate, and submit planning and building control applications. Managed council queries and ensured timely provision of additional information.
Surveying / Technical Execution

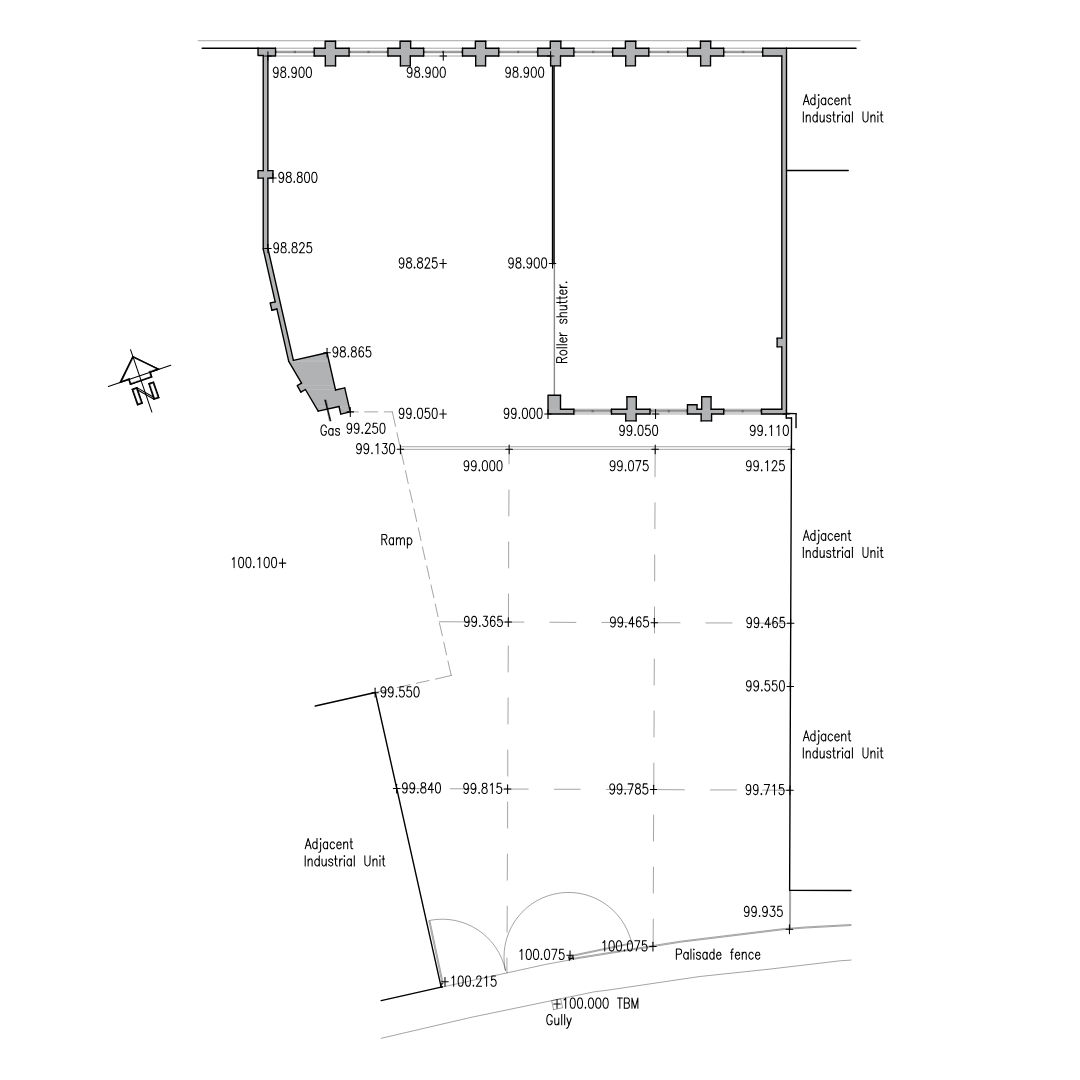

Conducted measured surveys of the existing building and full topographical survey of the site, capturing accurate data safely and efficiently.
CAD / Drafting Outputs

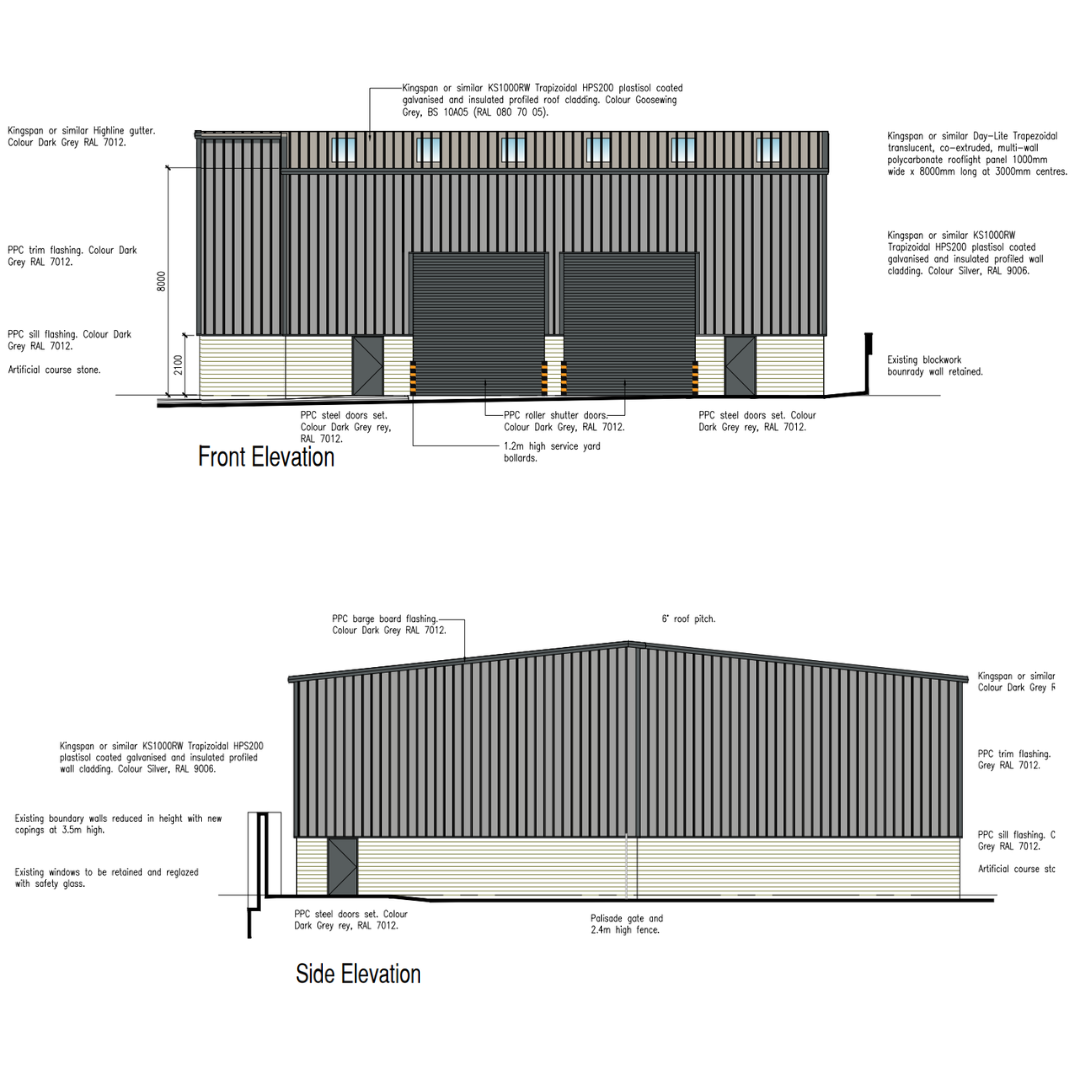

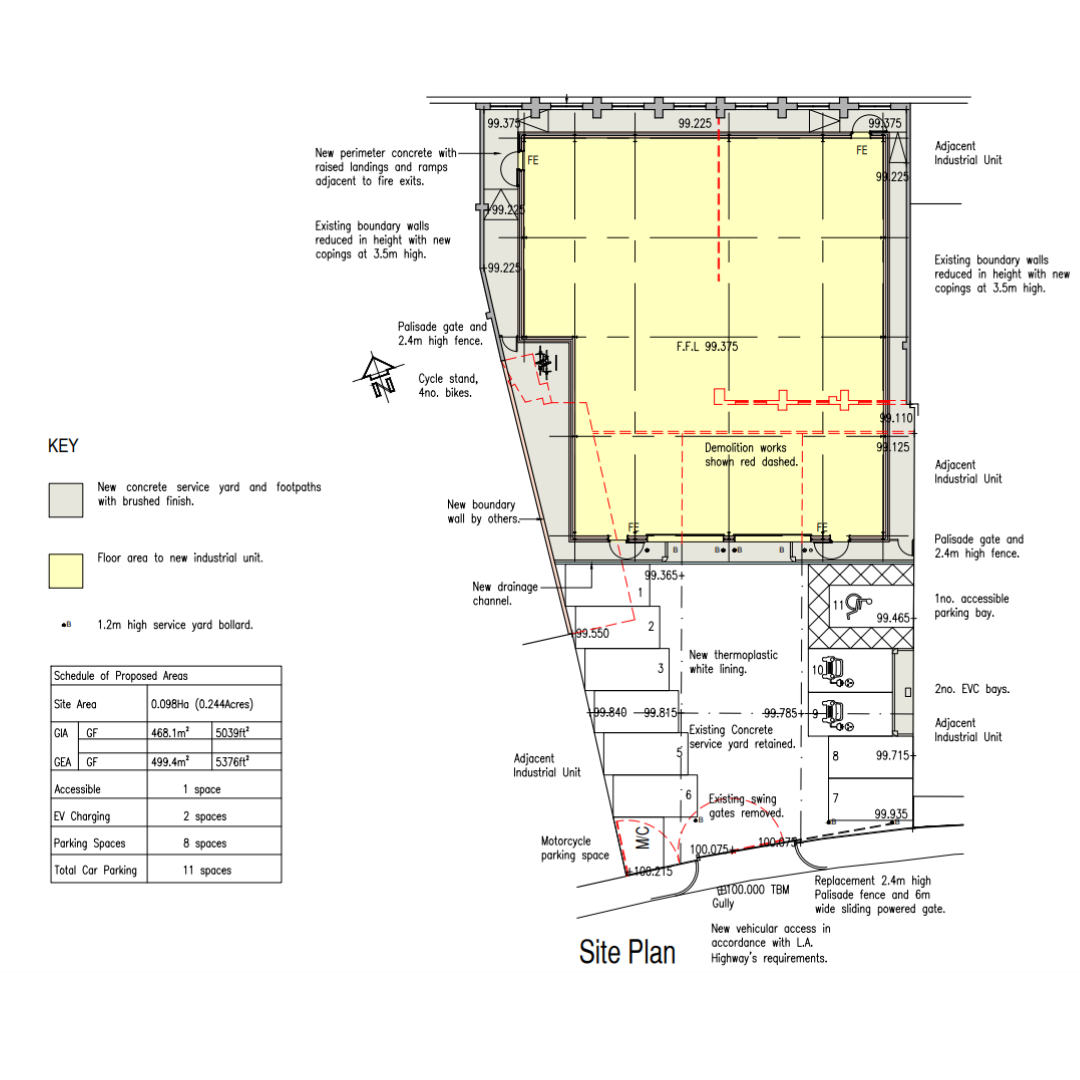

Converted survey data into 2D AutoCAD drawings, accurately representing site topography and layout. Developed draft proposals, then finalised plans,
elevations, sections, and construction details for approvals.
Collaboration with Contractors / Specialists
Liaised with structural engineers, environmental specialists, and third-party contractors to manage client expectations and ensure all technical considerations were addressed.
Outcome
Deliverables Achieved
Full planning approval granted first time without conditions
Complete building control drawings and specifications ready for tender
Project delivered on time and within budget
Client Satisfaction
The client was extremely satisfied with CAD Monke Ltd’s input, guidance, and professionalism.
Our Value
Demonstrating Expertise
CAD Monke Ltd is a reliable partner for commercial and industrial developments, capable of delivering multi-disciplinary services including planning, building regulation approval, surveying, and drafting.
Value for Future Clients
Clients can rely on CAD Monke’s ability to manage complex brownfield sites, coordinating multiple disciplines and removing the project management burden, ensuring projects progress smoothly from concept to construction.
CAD Monke Ltd combines multi-disciplinary expertise with hands-on project management, delivering industrial development projects efficiently, safely, and professionally.
